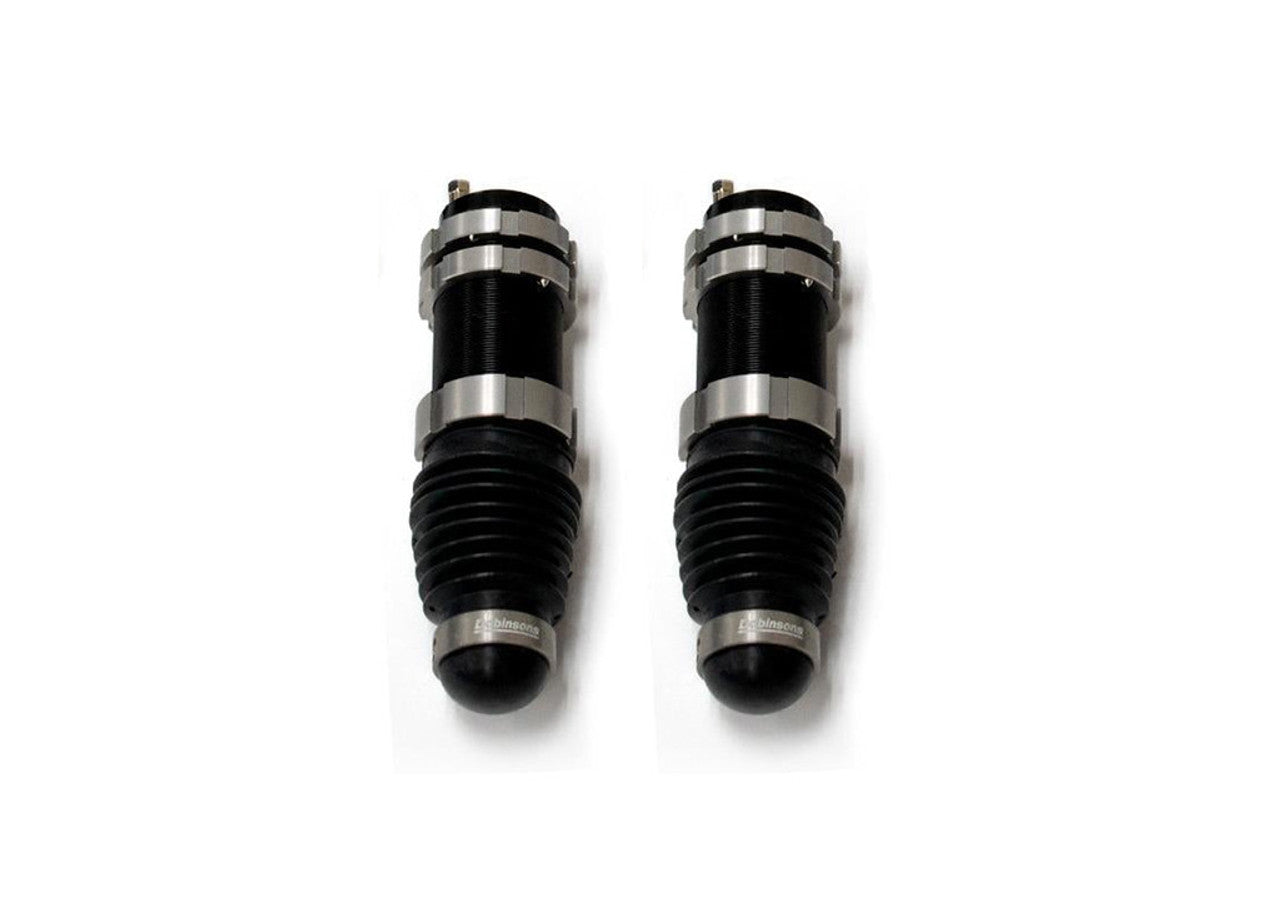

DOBINSONS | ADJUSTABLE HYDRAULIC BUMP STOP 2.2" | HBS56-001

2RPPro

DOBINSONS | ADJUSTABLE HYDRAULIC BUMP STOP 2.2" | HBS56-001

Sale price$690.00
Quantity:
DOBINSONS | ADJUSTABLE HYDRAULIC BUMP STOP 2.2" | HBS56-001

In depth specs:
HBS56-009 Does not include rubber boot

Part Number

Stroke

Thread Length

Extended Length

Compressed Length

HBS56-009

46mm - 1.8"

105mm - 4"

188mm - 7.4"

142mm - 5.6"

HBS56-006

50mm - 2"

125mm - 5"

238mm - 9.4"

188mm - 7.4"

HBS56-001

50mm - 2"

145mm - 5.7

273mm - 10.75"

 223mm - 8.75

  • CNC Machined 50mm Billet Aluminum Piston
  • EDP Coated 3mm Thick 56mm Steel Body
  • Threaded Body For Height Adjustment
  • Supplied with both Interchangeable Super Quiet Rubber Rod End & Hard Nylon
  • 30mm Micro Polished Hard Chrome Shaft
  • Slow Rebound Valving To Prevent Bucking
  • Removable Dust Cover Boot For Stealth Appearance
  • Fully Rebuildable & Tunable
  • O-Ring Travel Indicator
  • Heavy Duty Extreme-Race style Triple Seal Design
  • Nitrogen Gas Charged & Tunable (100 to 300 PSI)
  • Extra Short Dead Lengths For Compact Fitment

Fitting guide

      Whenever adding bigger tires, or doing a full suspension kit on an older vehicle, the original bump stops may be damaged, missing, or just not suitable. These Dobinsons adjustable height hydroaulic bump stops are the answer, allowing you to set the bump stop clearance height to the axle with the threaded body.
