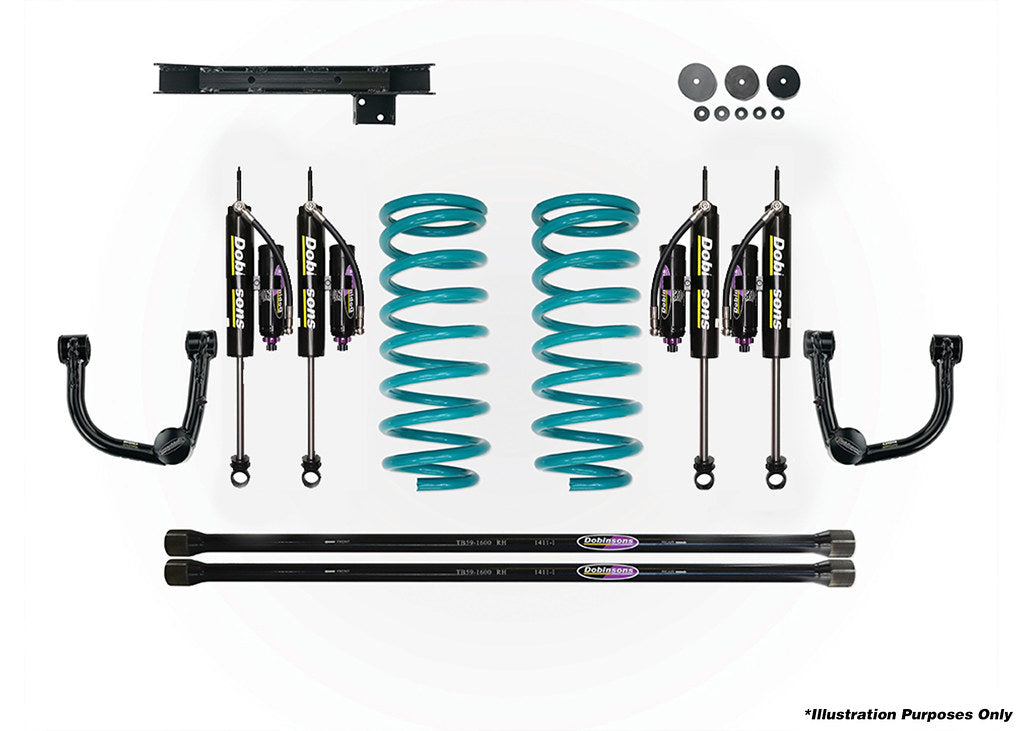

DOBINSONS | 2.5-3.0" MRR 3-Way Adjustable Lift Kit for Toyota Land Cruiser 100 Series / Lexus LX470 1998-2007 | DSSKITMRA75

2RPPro

DOBINSONS | 2.5-3.0" MRR 3-Way Adjustable Lift Kit for Toyota Land Cruiser 100 Series / Lexus LX470 1998-2007 | DSSKITMRA75

Sale price$4,550.00
Quantity:
DOBINSONS | 2.5-3.0" MRR 3-Way Adjustable Lift Kit for Toyota Land Cruiser 100 Series / Lexus LX470 1998-2007 | DSSKITMRA75

  • Rear Coil Spring Specs:
    • C59-223V (Lifts 1.00") No Extra Load
    • C59-169 (Lifts 2.00") Stock Load
    • C59-167 (Lifts 2.00") up to 220lbs constant Load
    • C59-175V (Lifts 2.50") up to 220lbs constant Load
    • C59-185 (Lifts 2.00") up to 440lbs constant Load
    • C59-171 (Lifts 2.00") up to 880lbs constant Load
  • 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
  • 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
  • 20 Stage Low Speed Compression - For creepy crawling and cornering
  • 15 Stage Rebound | Control your coils, prevent bucking
  • 60mm CNC Machined High Flow Billet Aluminium Race Piston
  • 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
  • Upgraded 3 Stage FKM-HNBR Sealing System
  • TSUGAMITM CNC machined components for precise tolerances
  • ParkerTM Braided High Pressure Hoses
  • 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
  • T6 6061 Height Adjustable Spring Seat
  • Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
  • 60mm Full 6063 aluminum remote reservoir
  • Lightweight CNC Machined Low Friction floating piston
  • High Quality O.E.M. Grade Natural Rubber Bushings
  • Single Piece Lower Leg
  • EDP Surface Protection
  • Direct Bolt-On Design
  • CNC TIG Precision Welded Body End Mounts
  • Fully Rebuildable Design
  • Diff Drop Kit and Upper Control Arms are REQUIRED for proper fitment.
  • A suitable full replacement for the AHC hydraulic system when installed all together. Will not work for airbag equipped vehicles.
